Range: ¼” to 4” (Up to 6” available on request)
Pressure Ratings: 2000 lbs, 3000 lbs, 6000 lbs, 9000 lbs
Form: Socket Weld (SW) and Nominal Pipe Thread (NPT)

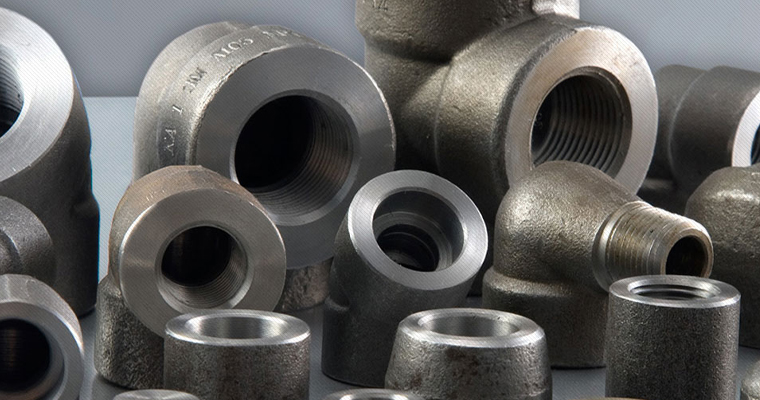

Types: Elbows, Couplings (Full / Half / Reducing), Caps, Plugs, Hex Head Bushings, Reducers, Welding Bosses, Unions, Swage Nipples (Concentric / Eccentric), Concentric Reducers, Tees (Equal / Reducing), Crosses
GRADES
- Carbon Steel: ASTM A105, A350 LF1, LF2
- Stainless Steel: F304H/L, F316/316L, F321/H, F347/H, 904L, 309, 310, 317L
- Alloy Steel: A350 LF3, F5, F11, F22, F51, F53, Alloy 20
- Nickel Alloys & Others: Alloy 400, Alloy 625, C276, Duplex and Super Duplex Stainless Steels, Copper Alloys, Titanium
DIMENSIONS & TOLERANCES
ASME/ANSI B16.11, BS 3799, MSS SP-79 / SP-83 / SP-95
Threads: ASME B1.20.1 (NPT)
STANDARDS
ANSI, ASTM, KS, JIS, JPI, MSS, DIN, BS, AWWA, 02-SAMSS-005, API, ASME
FINISHING
- Carbon Steel: Black, Hot Dip Galvanized, Electroplated
- Stainless Steel: Pickled and Passivated
